Stainless Steel U Bolts Manufacturer in India
SS Square U Bolt Supplier in Mumbai, Refer Specification Table
Stainless Steel U Bolts Specification
Stockist of Stainless Steel 316 Heavy Duty U Bolts in Different Sizes as per ISO and DIN Standards

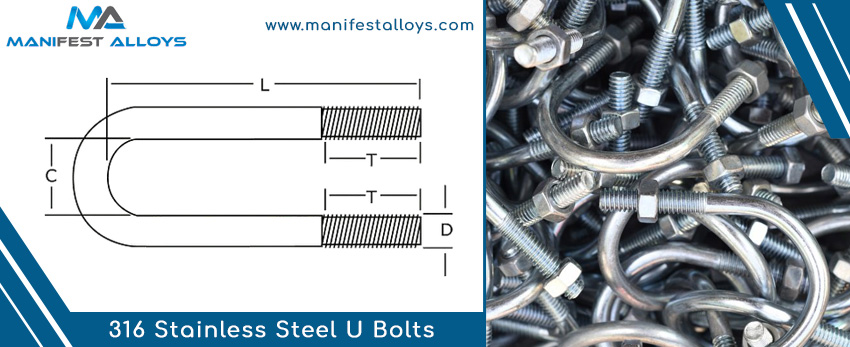

316 Stainless Steel U Bolts Size Chart
| Pipe Size | 03/4 | 01/2 | 1 | 1 1/2 | 1 1/4 | 2 | 3 | 2 1/2 | 4 | 3 1/2 | 5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dia | 01/4 | 01/4 | 01/4 | 03/8 | 03/8 | 03/8 | 01/2 | 01/2 | 01/2 | 01/2 | 01/2 |
| C (Hook) | 1 1/8 | 15/16 | 1 3/8 | 2 | 1 11/16 | 2 7/16 | 3 9/16 | 2 15/16 | 4 9/16 | 4 1/16 | 5 5/8 |
| T (Thread Length) | 2 3/8 | 2 3/8 | 2 3/8 | 2 1/2 | 2 3/8 | 2 1/2 | 3 | 3 | 3 | 3 | 3 |
| L (Length) | 3 5/16 | 3 1/4 | 3 7/16 | 4 | 3 3/4 | 4 1/2 | 5 13/16 | 5 1/4 | 6 13/16 | 6 5/16 | 7 13/16 |
| Pipe Size | 8 | 6 | 10 | 14 | 12 | 16 | 20 | 18 | 30 | 24 | 36 |
| Dia | 05/8 | 05/8 | 03/4 | 07/8 | 07/8 | 07/8 | 1 | 1 | 1 | 1 | 1 |
| C (Hook) | 8 3/4 | 6 3/4 | 10 7/8 | 14 1/8 | 12 7/8 | 16 1/8 | 20 1/8 | 18 1/8 | 30 1/8 | 24 1/8 | 36 1/8 |
| T (Thread Length) | 3 3/4 | 3 3/4 | 4 | 4 1/4 | 4 1/4 | 4 1/4 | 4 3/4 | 4 3/4 | 4 3/4 | 4 3/4 | 4 3/4 |
| L (Length) | 11 1/2 | 9 1/2 | 13 13/16 | 17 5/16 | 16 1/16 | 19 5/16 | 23 11/16 | 21 11/16 | 33 11/16 | 27 11/16 | 39 11/16 |
Stainless Steel Square U Bolts Sizes
| Size | (B x C) | 5/16"-18 (A) | 2" x 7" | 2" x 3" | 2" x 5" |
|---|---|---|---|---|---|
| Thread Length | (D) | 3" | 1-1/2" | 3" |
| Size | (B x C) | 3/8"-16 (A) | 4" x 6" | 3" x 4" | 4" x 3" | 3" x 6" | 3" x 7" | 4" x 5" |
|---|---|---|---|---|---|---|---|---|
| Thread Length | (D) | 3" | 2" | 1-1/2" | 3" | 3" | 3" |
Exporter of SS 304 Long U Bolts with UNC, UNF, UN8 and BSF Thread at Factory Prices
SS U Bolt Price List
| Product | Size | Price (INR) | Price (US) |
|---|---|---|---|
| SS 304 U Bolt | 2-1/2" | 36 | 0.43 |
| SS U Bolt | 1/2 - 12 inch | 68 | 0.82 |
| SS 316 Long U Bolt | up to 2.0 inch | 200 | 2.40 |
| SS Square U Bolt | 3/8-16 inch |
948 | 11.38 |
| AISI 304 U Bolt | M10 | 168 | 2.02 |
Manifest Alloys is Stainless Steel U Bolts Manufacturer in India, Provide SS Square U Bolt in Different Sizes as per Client Requirements at lowest price in Spain, Egypt, Saudi and Germany
Stainless Steel U Bolts Types

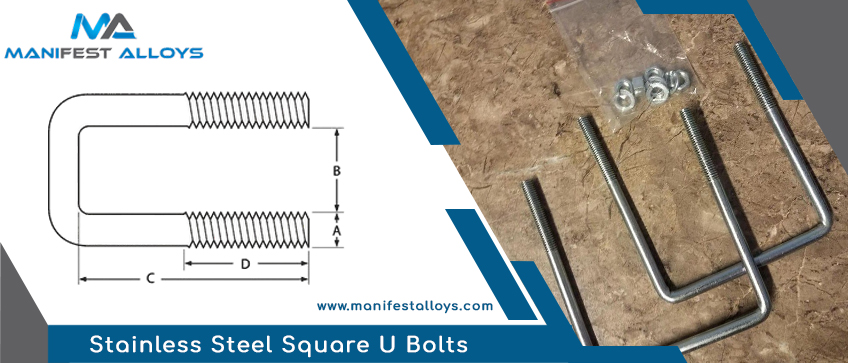

Stainless Steel Square U Bolts

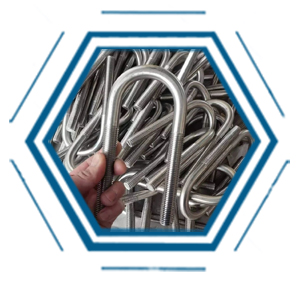

SS Heavy Duty U Bolts

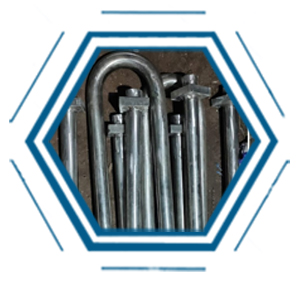

AISI 304 Long U Bolts
316l SS Large U Bolts

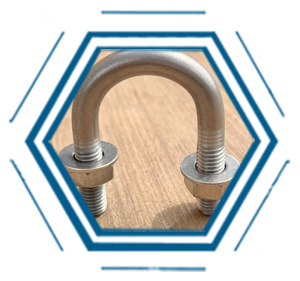

SS 316 Round U Bolts

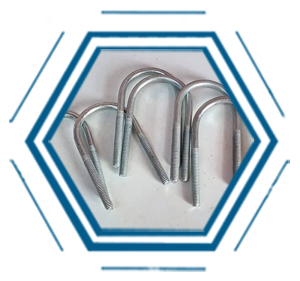

Stainless Threaded U Bolts

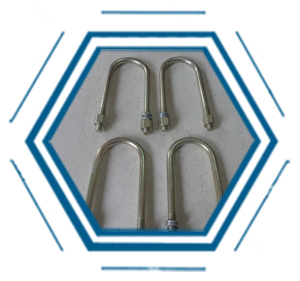

SUS 304l Extended U Bolts

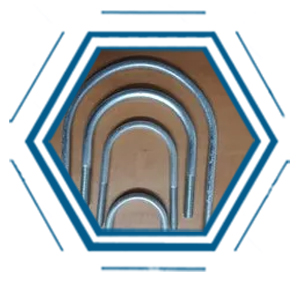

INOX 316 Leaf Spring U Bolts
Check 316l Stainless Steel Leaf Spring and Custom U Bolts Weight Chart
SUS 304 Round U Bolts Weight Char
| A (size) | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 5/16" | 5/16" | 5/16" | 5/16" | 5/16" | 3/8" | 5/16" | 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THREAD | 1/4"-20 | 1/4"-20 | 1/4"-20 | 1/4"-20 | 1/4"-20 | 1/4"-20 | 5/16"-18 | 5/16"-18 | 5/16"-18 | 5/16"-18 | 5/16"-18 | 3/8"-16 | 5/16"-18 | 3/8"-16 |
| B | 1.00" | 0.75" | 1.13" | 1.75" | 1.50" | 2.00" | 1.50" | 1.00" | 1.75" | 2.50" | 2.00" | 1.00" | 3.00" | 1.25" |
| C | 1.00" | 0.63" | 1.00" | 1.38" | 1.38" | 1.38" | 1.00" | 1.38" | 1.13" | 1.00" | 1.00" | 1.25" | 1.00" | 1.25" |
| D | 1.75" | 1.25" | 2.00" | 3.00" | 2.75" | 3.25" | 2.19" | 2.19" | 2.69" | 3.19" | 2.69" | 2.25" | 3.69" | 2.25" |
| PIPE | 1/2" | 3/8" | 3/4" | 1-1/4" | 1" | 1-1/2" | 1" | 1/2" | 1-1/4" | 2" | 1-1/2" | 1/2" | 2-1/2" | 3/4" |
| WT (LB) | 0.06 | 0.05 | 0.07 | 0.09 | 0.08 | 0.1 | 0.12 | 0.11 | 0.14 | 0.16 | 0.15 | 0.17 | 0.18 | 0.17 |
| WLL (LB) | 435 | 435 | 435 | 435 | 435 | 435 | 610 | 610 | 610 | 610 | 610 | 1,090 | 610 | 1,090 |
| A (size) | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | |
| THREAD | 3/8"-16 | 3/8"-16 | 3/8"-16 | 3/8"-16 | 3/8"-16 | 3/8"-16 | 1/2"-13 | 1/2"-13 | 1/2"-13 | 1/2"-13 | 1/2"-13 | 1/2"-13 | 1/2"-13 | |
| B | 1.75" | 1.50" | 2.00" | 3.00" | 2.50" | 3.50" | 3.50" | 3.00" | 4.00" | 5.63" | 4.50" | 8.75" | 6.75" | |
| C | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.25" | 1.50" | 1.63" | 1.50" | 2.00" | 1.50" | 2.00" | 2.00" | |
| D | 2.75" | 2.50" | 2.63" | 3.63" | 3.13" | 4.13" | 5.00" | 4.50" | 5.50" | 7.25" | 6.00" | 10.38" | 8.38" | |
| PIPE | 1-1/4" | 1" | 1-1/2" | 2-1/2" | 2" | 3" | 3" | 2-1/2" | 3-1/2" | 5" | 4" | 8" | 6" | |
| WT (LB) | 0.2 | 0.18 | 0.2 | 0.27 | 0.23 | 0.3 | 0.65 | 0.59 | 0.69 | 0.93 | 0.76 | 1.27 | 1.04 | |
| WLL (LB) | 1,090 | 1,090 | 1,090 | 1,090 | 1,090 | 1,090 | 2,020 | 2,020 | 2,020 | 2,020 | 2,020 | 2,020 | 2,020 |
Refer Stainless Steel Marine U Bolts Dimension Here
Stainless Steel U Bolt Dimensions
| NPS | 3/4" | 1/2" | 1.1/4" | 1" | 2" | 1.1/2" | 3" | 2.1/2" | 4" | 6" | 5" | 10" | 8" | 12" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | M6 | M6 | M10 | M6 | M10 | M10 | M12 | M12 | M12 | M12 | M12 | M16 | M16 | M16 |
| Between Centres(mm) | 34 | 28 | 54 | 41 | 75 | 60 | 102 | 90 | 131 | 182 | 156 | 292 | 240 | 343 |
| Thread Length (mm) | 30 | 30 | 30 | 30 | 35 | 35 | 50 | 55 | 50 | 50 | 50 | 50 | 50 | 50 |
| Depth of U (mm) | 53 | 48 | 67 | 60 | 95 | 85 | 126 | 124 | 144.5 | 210 | 182 | 318 | 252 | 363.6 |
SS U Shaped Bolts Chemical Composition
| Grade | 304L | 304 | 316 | 316L |
|---|---|---|---|---|
| Mn | 2.0 | 2.0 | 2.0 | 2.0 |
| P | 0.045 | 0.045 | 0.045 | 0.045 |
| Si | 0.75 | 0.75 | 1.0 | 1.0 |
| Ni | 8.0-12.0 | 8.0-10.5 | 11.00 – 14.00 | 10.00 – 14.00 |
| Mo | – | – | 2.00 – 3.00 | 2.00 – 3.00 |
| S | 0.03 | 0.03 | 0.030 | 0.030 |
| N | 0.1 | 0.1 | 67.845 min | 68.89 min |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.00 – 18.00 | 16.00 – 18.00 |
| C | 0.030 | 0.08 | 0.08 | 0.035 |
Popular Stainless Steel U Bolts Supplier in India, Buy Long, Large and Round U bolts in Various Sizes in Accordance with ANSI, DIN and ISO Standards at Reasonable Price in Mumbai
Stainless Heavy Duty U Bolts Mechanical Properties
| Grade | 304l | 304 | 316 | 316l | ||
|---|---|---|---|---|---|---|
| Tensile Strength, | min | MPa | 500 and 700 MPa | 515 | 579 MPa | 485–700 |
| ksi | 70 | 75 | 75 | 70 | ||
| Elongation in 2 in. | or 50 mm, min, % | 40 | 40 | 50% | 40% | |
| Yield Strength, | min | MPa | 210 MPa | 205 | 290 | 205 |
| ksi | 25 | 30 | 30 | 25 | ||
| Hardness, maxC | Rockwell | 92 | 92 | 95 | 95 | |
| Brinell.HB | 201 | 201 | 217 | 140–160 | ||
SS Long U Bolts Equivalent Grades
| Grades | SS 304 | SS 304L | SS 316 | SS 316L | ||
|---|---|---|---|---|---|---|
| JIS | SUS 304 | SUS 304L | SUS 316 | SUS 316L | ||
| BS | 304S31 | 3304S11 | 316S31 / 316S33 | 316S11 / 316S13 | ||
| GOST | 08Х18Н10 | 03Х18Н11 | – | 03Ch17N14M3 / 03Ch17N14M2 | ||
| UNS | S30400 | S30403 | S31600 | S31603 | ||
| WNR | 1.4301 | 1.4306 / 1.4307 | 1.4401 / 1.4436 | 1.4404 / 1.4435 | ||
| AFNOR | Z7CN18‐09 | Z3CN18‐10 | Z7CND17‐11‐02 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | ||
| EN | X5CrNi18-10 | X2CrNi18-9 / X2CrNi19-11 | X5CrNiMo17-12-2 / | X3CrNiMo17-13-3 | X2CrNiMo17-12-2 / | X2CrNiMo18-14-3 |
AISI 304l Square U Bolt Torque Chart
| Bolt Dia | 01/2 | 9/16 | 05/8 | 03/4 | 07/8 | 1 | 1.3/8 | 1¼ | 1.1/8 | 1.9/16 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Torque FT-LBS | 70% | Torque | 36 | 53 | 73 | 129 | 166 | 249 | 435 | 417 | 297 | 392 |
| 100% Final | Torque | 52 | 75 | 104 | 184 | 237 | 356 | 622 | 596 | 424 | 560 | |
| 30% Initial | Torque | 16 | 23 | 31 | 55 | 71 | 107 | 186 | 179 | 127 | 168 | |
| BOLT | DIA | 1¾ | 1½ | 1.5/8 | 2¾ | 1.7/8 | 2 | 2¼ | 3 | 2½ | ||
| Torque FT-LBS | 70% | Torque | 561 | 574 | 445 | 2300 | 696 | 853 | 1234 | 3008 | 1709 | |
| 100% Final | Torque | 801 | 821 | 636 | 3285 | 994 | 1219 | 1762 | 4297 | 2442 | ||
| 30% Initial | Torque | 240 | 246 | 191 | 986 | 298 | 366 | 529 | 1289 | 733 | ||
